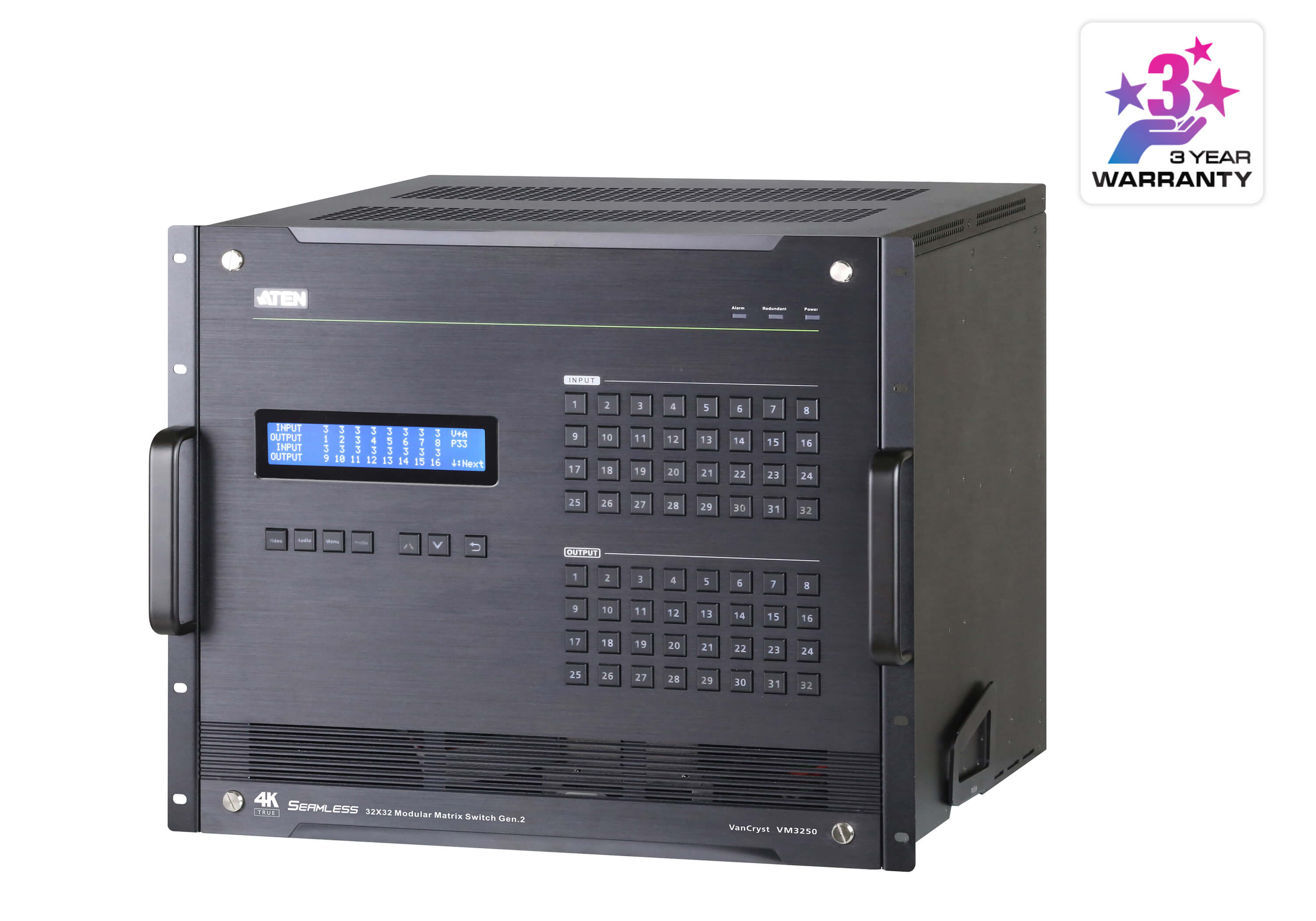

32 x 32 Modular Matrix Switch Gen.2 VM3250

VM3250 From: Aten Professional Audio/Video

32 x 32 I/O connections via 8 x 8 I/O slots for modular matrix boards
Multiple Control Methods – system management via front-panel pushbuttons, serial control over RS-232/RS-485/RS-422, and web GUI/Telnet over Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
True 4K Resolutions – Supports uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) *
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions*
Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output
Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration
Calendar-based Scheduling – allows profile playing based on the pre-set schedule synchronized with RTC
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*
Optional Redundant Power Supply – ensures higher reliability for mission-critical applications
Support long-distance transmission via optical or HDBaseT I/O boards and extenders
Hot-swappable I/O boards, fan module, and power supplies for easy maintenance
ESD protection for HDMI
Rack-mountable (9U design)
*Note:
1. The availability of these features depends on which I/O board is inserted.
2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™

Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions; True 4K resolutions support
Hot-swappable I/O boards, fan module, and power supplies for easy maintenance
Live stream of connected video channels and image preview of video wall layouts via web GUI
Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections

Board Input	8 x Slot
Board Output	8 x Slot
Video Input
Interfaces	Depends on which I/O board is inserted
Max. Data Rate	22.5 Gbps
Audio
Input	Depends on which Input board is inserted
Output	Depends on which Output board is inserted
Control
RS-232	Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422	Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet	Connector: 1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60Hz; 1.0A
Power Consumption	AC110V:800W:239BTU AC220V:800W:236BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Dimensions (L x W x H)	48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.)
Weight	18.20 kg ( 40.09 lb )
Rack Height (U Spaces)	9U
Carton Lot	1 pc
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
